Overview

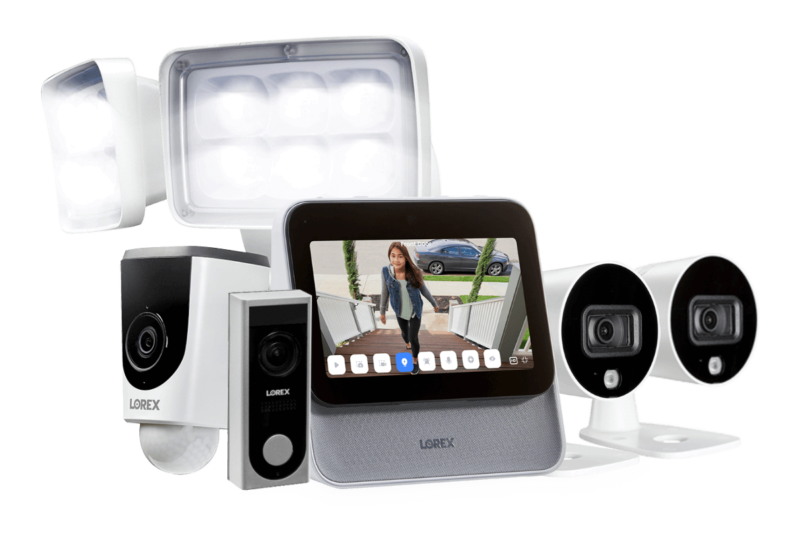

Bring it all together with the Lorex Home Center. This revolutionary home monitoring solution puts the controls firmly in your hands with its simple touch screen interface. View and customize the included 2 Outdoor and 1 Indoor Smart Wi-Fi Security Cameras using the Lorex Home Center or use our new “Lorex Voice™ Assistant” to conveniently access and control your cameras with just the sound of your voice. Two Window / Door Motion Sensors and one Motion Sensor are also included, which will add some valuable video-free security to your property. Each sensor can also be linked to a nearby Wi-Fi camera to automatically start its recording. The Lorex Home Center is a versatile hub designed to provide you with easy security while maintaining maximum privacy. This center also allows you to add further wireless cameras, devices and accessories to build the perfect security system for your home.
LHC-K1
SPECIFICATIONS
1
Lorex Home
Center
7″ touch-screen control hub
4
CAMERAS
2x Outdoor Camera
1x Doorbell
1x Floodlight
64GB
MICRO SD
Maximum 1x 256GB
microSD /1TB M.2 2280 Sata SSD M.
Works with
Lorex Home™ App
More than a security system, the center of your home
The all-in-one Lorex Home Center simplifies your home monitoring experience with its intuitive touch smart display. You can also use your voice to perform simple commands, such as:
“Lorex, show me all outdoor cameras”
“Lorex, show me what happened yesterday at the ‘front door’ camera”
“Lorex, show me all people* at the ‘front door’ camera between 2 and 3pm”
“Lorex, turn on warning lights on all outdoor cameras”
“Lorex, turn privacy mode on for all indoor cameras”
* Requires supported camera and setting to be turned on
Touch Screen
Secure and Private
Multi-Device Compatibility
Lorex Voice™ Assistant
Local Security Grade Storage
Control and access all compatible Lorex devices
Control features with the intuitive 7-inch touch display*.
Lorex Home Center Compatibility
Pair a variety of Lorex wireless devices and control them from the Lorex Home Center.
How to Pair Devices to the Lorex Home Center
The connection process for some Lorex Home Center compatible devices differs:
Direct Setup Method
Connect directly to the Lorex Home Center
App Setup Method
Connect to the Lorex Home App *
W282CAD
AK41TK
AM41TK
V261LCD
W261ASC
W261AQC
*Make sure to upgrade the camera to the latest firmware via the app
Remote viewing from your mobile with Lorex Home™
Your home will always be within reach with help from the Lorex Home Mobile App. This versatile app allows you to remotely access your Lorex Home Center so you can easily view live videos, customize your system settings, playback recorded motion events and more. You can also link your sensors to nearby Lorex Wi-Fi cameras to automatically start recording whenever one of your sensor alarms are triggered.
Frequently Asked Questions
Still Have Questions?
Step 1. Connect your Lorex Home Center to your network via Ethernet or Wi-Fi.
Step 2. On the Lorex Home Center, go to Home Screen > Device Settings > Device Info > Lorex Home Center, then tap Device ID to open the QR Code.
Step 3. Now, get your smartphone and open the Lorex Home app, then tap + at the topmost right corner of the screen and scan the QR Code bring displayed on your Lorex Home Center.
Step 4. Follow the on-screen instructions on adding your Lorex Home Center to the Lorex Home app.
Step 1. Go to Home Screen > Device Settings > Security Settings.
Step 2. Turn On or Off Require passcode to unlock or Face Unlock.
NOTE: Using the camera cover to hide the lens will not turn off the feature. It will simply prevent video capturing for the Face Unlock feature.
NOTE: In Offline Mode, you can still view your camera, and your sensors remain functional, but you cannot see your devices remotely from the Lorex Home app.
Step 1. Go to Home Screen > Device Settings > Network Settings.
Step 2. Tap Wi-Fi Network, then toggle the button to on or off.
Step 3. Tap Wired Network, then toggle the button to on or off.
FEAUTRES
LHC-K1
| Screen Size | 7″ Diagonal |
|---|---|
| Screen Type | LCD Touch Screen |
| Audio | Full Duplex 2-way Audio |
| Microphone | 2 × Noise Cancelling Microphones |
| Built-in front camera | 1080p, support physical cover |
| Speakers | 3 × Speakers |
| Camera | Built-in |
| Wireless Camera Support | Up to 8×1080p or 4×2K |
| Wireless Sensor Support | Up to 32 |
| Simultanous Camera Viewing | Up to 4 channels |
| Voice Assistant | Lorex Voice Assistant |
| Privacy Features | Local Voice Assistant, Microphone Disconnect Switch, Camera Cover |
| Digital Zoom | Camera Dependent |
| Log-in Options | Password or Face Unlock |
| Status LED | Multi-color LED status bar indicator |
| Sensors | Ambient Light |
| Storage | microSD (up to 256GB) or M.2 2280 SATA SSD M (up to 1TB)* |
| Internet Recommendation | 2 cameras ~4Mbps / 4 cameras ~10Mbps @1080p upload speed** |
| Home Router Connectivity | 100Mbps Ethernet or 5GHz Wi-Fi |
| Device Connectivity | 2.4/5GHz Wi-Fi / BLE 5.0 |
| Ports | Power, Ethernet, 1 × USB |
| Weather Rating | Indoor only |
| Operating Temp. Range | 32~104°F / 0~40? |
| Languages | English |
| Power | 12V DC / 2A |
| Available Color | White |
| Dimensions | 7.5 x 3.6 x 7.0″ / 19.0 x 9.1 x 17.7cm |
| Weight | 1.81lb / 0.92kg |
1. Playback screen is HD resolution. Footage can be exported at full resolution, or can be zoomed into on the device.
2. Compatible with certain Lorex wireless cameras only.
3. Controlling certain features in your security system requires a compatible smart device. Availability and performance of certain features and services are smart device dependent and may not be available in all areas or networks.
4. Accessing your security system remotely requires a high-speed Internet connection. Ensure your recorder has a connection to a router (not included). An upload speed of at least 5 Mbps is recommended for remote video viewing.
*Check packaging for included storage
**Devices stream by default using substream at lower resolution
W282CA
Smart Indoor/Outdoor Wi-Fi Security Camera:
-
Smart Motion distinguishes movement detected by either people or vehicles, limiting unnecessary alerts1
-
The Lorex Home™ app sends you motion notifications ensuring you don’t miss a thing
-
Experience enhanced nighttime clarity and better video evidence with Color Night Vision™2
-
When light is limited, take advantage of 50 ft (15 m) IR night vision3
-
View live or recorded video from your smartphone with the Lorex Home™ app (compatible with: Apple TV™)4
-
Local microSD storage, expandable up to 256 GB
-
Motion-activated LED warning light can be manually enabled or customized to only be triggered when a person or vehicle is detected
-
Deter uninvited guests with remote activated siren
-
Built-in mic and speaker allows you to listen and speak to visitors with 2-way talk5
V261LCD-E
1080p Wi-Fi Floodlight Camera:
-
2 × 2000 lumens light arrays for optimal light coverage
-
LED floodlight can activate when motion is detected, manually, or on a schedule
-
See more with 1080p resolution and a wide 137° Field of View (diagonal)
-
PIR Motion 270° Field of View (diagonal)
-
IR night vision up to 50ft (15m)1
-
No monthly fee for video recording, storage and photo capturing
-
Includes a 32 GB microSD card. Supports up to 256 GB microSD storage
-
Built-in mic and speaker for 2-way talk. Listen or talk directly to anyone on your property using the Lorex Home App2
-
Conveniently use the existing wiring from your previous floodlight or outdoor house light
1. Stated IR illumination range is based on ideal conditions in typical outdoor nighttime ambient lighting (up to 50ft/15m). Actual range and image clarity depends on installation location, viewing area and light reflection/absorption
2. Audio recording without consent is illegal in certain jurisdictions. Lorex Technology does not assume liability for any use of its product that fails to conform with local laws.
LNWDB1
HD Wi-Fi Video Doorbell
-
Ultra-wide 160° Field of View (diagonal)
-
IR night vision up to 33ft (10m)1
-
Be aware of motion around your doorstep
-
Receive notifications from the Lorex Home™ app when motion is detection2
-
No monthly fee for video recording, storage and photo capturing
-
Built-in accessible 16GB microSD card
-
Upgrade storage up to a 64GB microSD
-
Built-in mic and speaker allows you to listen and speak to visitors. No matter your location, use 2-way talk through the Lorex Home™ app3
-
Compatible with existing doorbell wiring (16V-24V) and traditional mechanical and electronic digital chimes.
